-Main Features of The plant:
- 316 stainless steel reactor vessel heated by electric and gas burner system.
- no.2 graduated storage tank for HNO3 and demi- water
- no.1 plant for silver recovery and reduction from solution, composed of a reactor with useful capacity.
- no.2 filter trolley stainless steel material with a compressed AOD(air diaphragm pump to transfer the solution.
- regulation of vessel stirring system.
- fume scrubber build in polypropylene with maximum flow up to equipped with heat exchange and automatic control.
- washing spray
- with chiller system
- silver powder palled (Ladu machine)
- centrifugal blower
- copper recovery tank
- very easy to operate
- 100 % pollution free equipment
- only one men power required to operate
- recovery to Gold, Silver And Copper
- gross weight : 250 kg
- purity : 999
- recovery as per your XRF Touch report depended
- process hours : 8/ 9
The filtration system is very versatile and allows to reduce the time of neutralization. The range of chemical refining plants is very broad and allows processing amount of silver up to 500 kg per batch. The production time can vary from a few minutes up to 3-4 hours for large installations which require high purity silver.

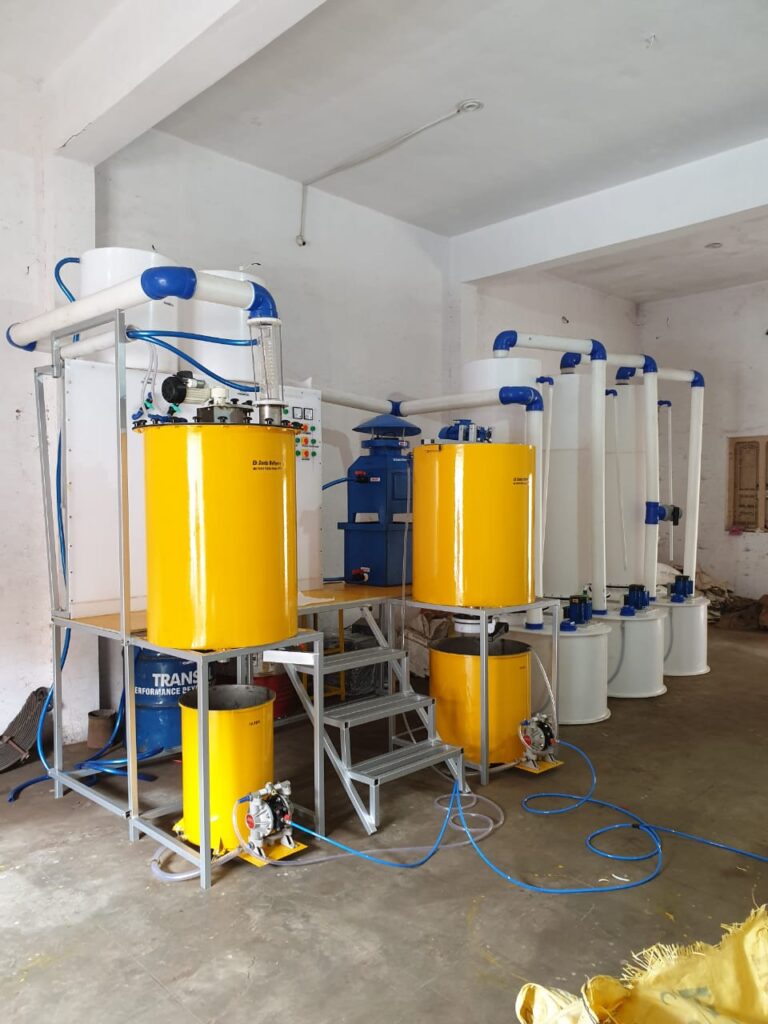

The above system can be customized upon request of the customer, the photos submitted are just one example of the many possible system solutions.
Based on the needs of the customer is possible to create customized systems, with suitable characteristics for the process requirements.
| Technical Data | EDR-SRM | EDR-SRM | EDR-SRM | EDR-SRM | EDR-SRM |
| Power Supply | 1/3 Phase | 1/3 phase | 1/3 Phase | 1/3 phase | 1/3 Phase |
| Power | 1 KW | 1 KW | 1 KW | 1.5 KW | 2 KW |
| Cooling Water | 400 | 500 | 750 | 900 | 900 |
| Capacity | 5 Kg | 10 Kg | 20 Kg | 30 Kg | 50 Kg |
| Overall Dimensions(mm) | L-2100
W-900 H-2100 | L-4200
W-900 H-2100 | L-4200
W-900 H-2400 | L-5400
W-1800 H-2400 | L-7500
W-1800 H-2400 |
| Technical Data | EDR-SRM | EDR-SRM | EDR-SRM | EDR-SRM |
| Power Supply | 1/3 Phase | 3 phase | 3 Phase | 3 phase |
| Power | 3 KW | 3.5 KW | 5 KW | 5.5 KW |
| Cooling Water | 1000 | 1000 | 1200 | 1400 |
| Capacity | 100 Kg | 200 Kg | 500 Kg | 1000 Kg |
| Overall Dimensions(mm) | L-9000
W-1800 H-2400 | L-10500
W-2100 H-2700 | L-12000
W-2400 H-3000 | L-13500
W-2400 H-3600 |
